6-INCH DIAMETER

CEMA E

20

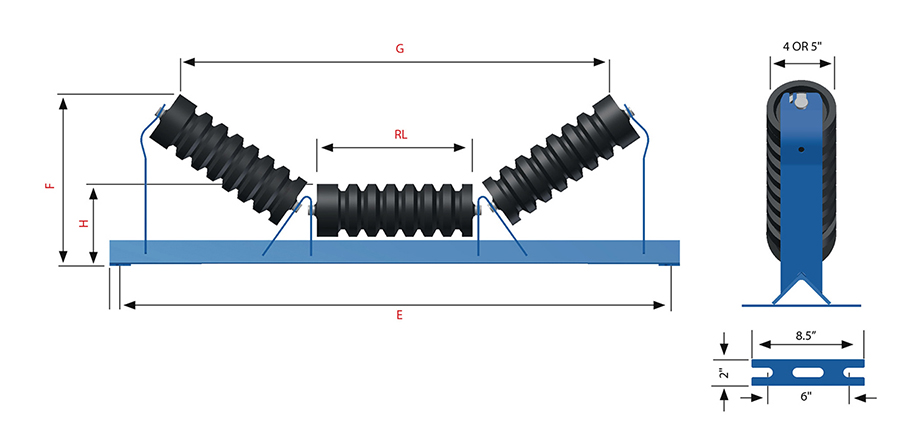

BELTEFGHRL
36"45"15.5"39.25"10.75"12.5"
42"51"16.25"45"10.75"14.5"
48"57"16.875"50.75"10.75"16.5"
54"63"17.625"56.5"10.75"18.5"
60"69"18.25"62.25"10.75"20.5"
72"81"20.375"73.75"11.5"24.5"
84"93"21.875"85.25"11.625"28.5"
96"105"23.25"96.75"11.625"32.5"
PART #WEIGHT
36-265-HDE146 LBS.
42-265-HDE156 LBS.
48-265-HDE167 LBS.
54-265-HDE177 LBS.
60-265-HDE205 LBS.
72-265-HDE265 LBS.
84-265-HDE306 LBS.
96-265-HDE346 LBS.

6-INCH DIAMETER

CEMA E

35

BELTEFGHRL
36"45"18.375"35"10.75"12.5"
42"51"19.5"40.25"10.75"14.5"
48"57"20.625"45.5"10.75"16.5"
54"63"21.75"50.75"10.75"18.5"
60"69"22.875"56"10.75"20.5"
72"81"25.875"66.625"11.5"24.5"
84"93"28.375"77.125"11.625"28.5"
96"105"30.625"87.75"11.625"32.5"
PART #WEIGHT
36-365-HDE152 LBS.
42-365-HDE162 LBS.
48-365-HDE173 LBS.
54-365-HDE183 LBS.
60-365-HDE211 LBS.
72-365-HDE271 LBS.
84-365-HDE312 LBS.
96-365-HDE352 LBS.

6-INCH DIAMETER

CEMA E

45

BELTEFGHRL
36"45"20.125"30.875"10.75"12.5"
42"51"21.5"37.25"10.75"14.5"
48"57"22.875"42.125"10.75"16.5"
54"63"24"47"10.75"18.5"
60"69"25.5"51.875"10.75"20.5"
72"81"29"61.625"11.5"24.5"
84"93"32"71.375"11.625"28.5"
96"105"34.875"81.125"11.625"32.5"
PART #WEIGHT
36-465-HDE157 LBS.
42-465-HDE167 LBS.
48-465-HDE178 LBS.
54-465-HDE188 LBS.
60-465-HDE216 LBS.
72-465-HDE276 LBS.
84-465-HDE317 LBS.
96-465-HDE357 LBS.

7-INCH DIAMETER

CEMA E

20

BELTEFGHRL
36"45"16"38.875"11.25"12.5"
42"51"16.75"44.625"11.25"14.5"
48"57"17.375"50.375"11.25"16.5"
54"63"18.125"56.125"11.25"18.5"
60"69"18.75"61.875"11.25"20.5"
72"81"20.875"73.375"12"24.5"
84"93"22.375"84.875"12.125"28.5"
96"105"23.75"96.375"12.125"32.5"
PART #WEIGHT
36-275-HDE188 LBS.
42-275-HDE202 LBS.
48-275-HDE215 LBS.
54-275-HDE228 LBS.
60-275-HDE263 LBS.
72-275-HDE300 LBS.
84-275-HDE339 LBS.
96-275-HDE378 LBS.

7-INCH DIAMETER

CEMA E

35

BELTEFGHRL
36"45"18.75"34.5"11.25"12.5"
42"51"19.875"39.75"11.25"14.5"
48"57"21"45"11.25"16.5"
54"63"22.125"50.25"11.25"18.5"
60"69"23.75"55.5"11.25"20.5"
72"81"26.75"66.125"12"24.5"
84"93"28.75"76.625"12.125"28.5"
96"105"31"87.25"12.125"32.5"
PART #WEIGHT
36-375-HDE194 LBS.
42-375-HDE208 LBS.
48-375-HDE222 LBS.
54-375-HDE235 LBS.
60-375-HDE270 LBS.
72-375-HDE308 LBS.
84-375-HDE350 LBS.
96-375-HDE388 LBS.

7-INCH DIAMETER

CEMA E

45

BELTEFGHRL
36"45"20.5"31.625"11.25"12.5"
42"51"21.875"36.5"11.25"14.5"
48"57"23.25"41.375"11.25"16.5"
54"63"24.375"46.25"11.25"18.5"
60"69"25.875"51.125"11.25"20.5"
72"81"29.375"60.875"12"24.5"
84"93"32.375"70.625"12.125"28.5"
96"105"35.25"80.375"12.125"32.5"
PART #WEIGHT
36-475-HDE199 LBS.
42-475-HDE213 LBS.
48-475-HDE228 LBS.
54-475-HDE241 LBS.
60-475-HDE276 LBS.
72-475-HDE315 LBS.
84-475-HDE360 LBS.
96-475-HDE396 LBS.
