Drum & Wing Pulleys

$1.00

Luff Industries manufactures industry leading pulleys fabricated from heavy schedule pipe allowing for improved performance and longer life. Typically, 50% thicker pulley shell absorbs more stress and protects against abrasive wear. The strength of these pulleys means less maintenance and reduced belt wear.

For self-cleaning action, customers can choose between a standard wing pulley and a spiral wrapped wing pulley, depending on the type of application and requirements. The engineered deflectors discharge material to the sides of the conveyor, while the spiral wrap maintains constant belt contact, eliminating extra noise and vibration.

Luff manufactures drum pulleys fabricated from heavy schedule pipe allowing for improved performance and longer life, versus the competitors rolled steel shell. The strength of these pulleys means less maintenance and reduced belt wear. Luff typically machines a large trapezoidal crown angle, providing superior belt tracking and ensuring maximum pulley concentricity. Having maximum contact with the belt aids in belt tracking, reduces vibration and stress on bearings and lowers decibels during operation.
There are a variety of lagging options available for Luff drum pulleys to protect your investment even further.

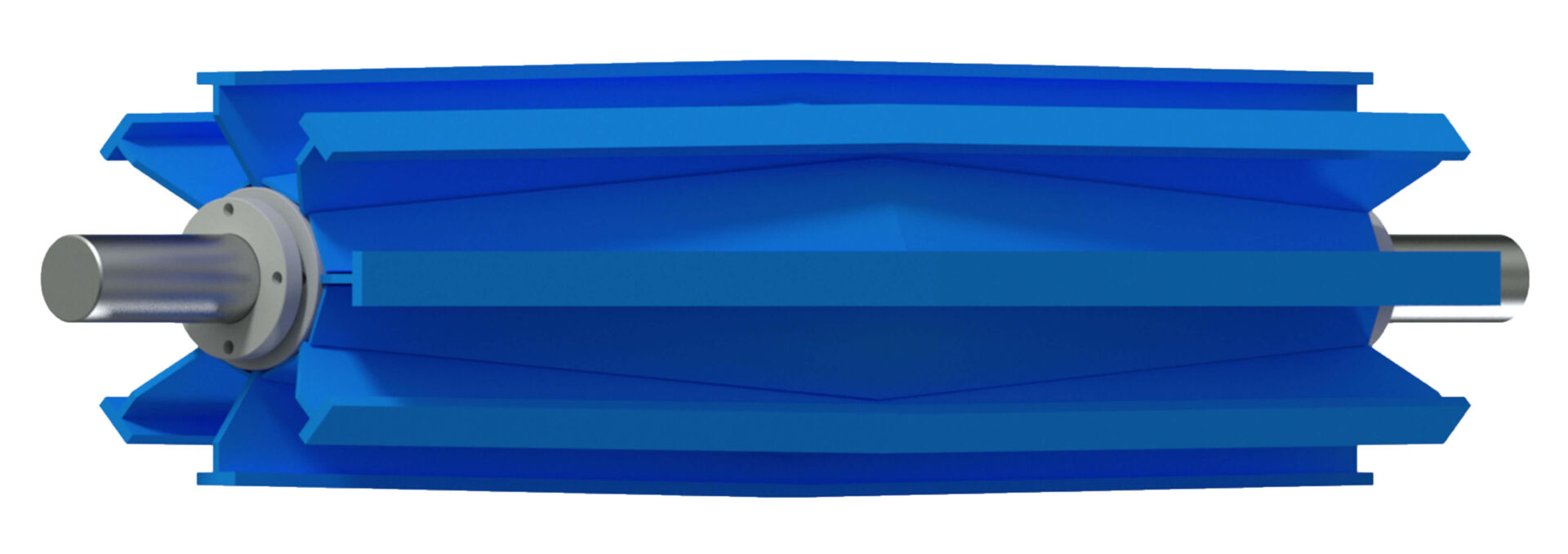

Luff Wing Pulleys are primarily used on light and medium duty conveyor systems. Wing pulleys break the surface contact with the belt creating a vibration that cleans off sticking material. The material is than discharged by the deflectors to the sides of the conveyor.

  • Available in standard diameters from 6″ to 48″, and standard face widths from 12″ to 75″
  • Fabricated to CEMA standards for welded steel conveyor pulleys
  • All pulleys are jig welded and machined to Luff’s strict quality standards, along with ISO 9001:2015 (International Standards of Quality)
  • Is fully assembled when bushings and shaft are ordered
  • Mine duty and engineered class pulleys available upon request
  • Drum pulleys can be statically or dynamically balanced upon request
  • All drum pulleys manufactured using heavy schedule pipe

NOTE: All wing pulleys 16″ diameter and greater come complete with a reinforcing ring. All mine-duty pulleys come equipped with a reinforcing ring.

Drum Pulleys
Wing Pulleys
Pulley-Data-Sheet 2024
Pulley Data Sheet Single Turndown 2024

Industry leading warranty

Luff Industries Ltd. warrants that the products it manufactures are free from defects in material and workmanship, when used under normal operating conditions. The duration of this warranty is 24 months from the date of delivery, or 2,000 hours of operation, whichever occurs first.

If a defect is found to arise from manufacturing, the customer must notify Luff Industries Ltd. in writing, within 30 days from the date of failure before proceeding with repairs or returning the product. Luff Industries Ltd. will correct any defect in materials or workmanship by repair or replacement of the defective product. Luff Industries Ltd. shall not be responsible, under any circumstances, for more than the cost of repair or replacement of the defective product. Non-compliance of the above conditions can void the warranty and Luff Industries Ltd. will not be responsible for the cost of repairing or replacing the product.
