Manufactured for heavy duty applications, Luff CEMA E Idlers use a full steel shell and steel endcap design offering the ultimate in strength, durability and sealing performance. All CEMA E Idlers are complete with no maintenance SKF bearings and High Moisture Seal for even more protection against contamination.
Available in 5”, 6”, 7” and 8” diameters, CEMA E Steel and Impact Idlers are manufactured with Luff’s steel endcap design and Triple Labyrinth Seal, offering the ultimate in strength, durability and sealing performance. CEMA E rollers are built with a 1.75” shaft, turned down to 40 mm for bearings.
The Anti-lock Shield/High Moisture Seal comes standard on CEMA E Idlers to further improve the bearing protection against moisture and contaminants.

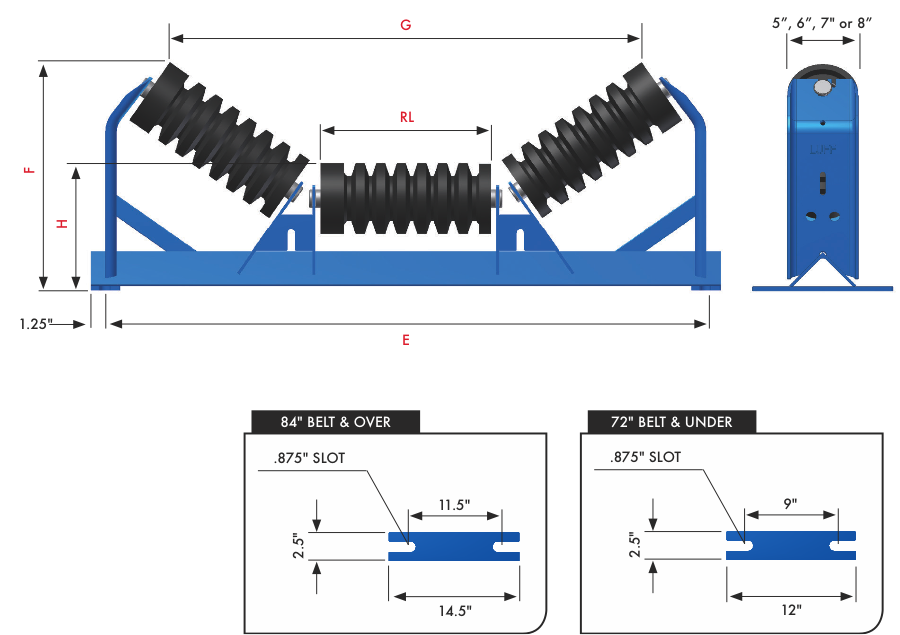

| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 15.5″ | 39.25″ | 10.75″ | 12.5″ | 146 LBS |
| 42″ | 51″ | 16.25″ | 45″ | 10.75″ | 14.5″ | 156 LBS |
| 48″ | 57″ | 16.875″ | 50.75″ | 10.75″ | 16.5″ | 167 LBS |
| 54″ | 63″ | 17.625″ | 56.5″ | 10.75″ | 18.5″ | 177 LBS |
| 60″ | 69″ | 18.25″ | 62.25″ | 10.75″ | 20.5″ | 205 LBS |
| 72″ | 81″ | 20.375″ | 73.75″ | 11.5″ | 24.5″ | 265 LBS |
| 84″ | 93″ | 21.875″ | 85.25″ | 11.625″ | 28.5″ | 306 LBS |
| 96″ | 105″ | 23.25″ | 96.75″ | 11.625″ | 32.5″ | 346 LBS |
| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 18.375″ | 35″ | 10.75″ | 12.5″ | 152 LBS |
| 42″ | 51″ | 19.5″ | 40.25″ | 10.75″ | 14.5″ | 162 LBS |
| 48″ | 57″ | 20.625″ | 45.5″ | 10.75″ | 16.5″ | 173 LBS |
| 54″ | 63″ | 21.75″ | 50.75″ | 10.75″ | 18.5″ | 183 LBS |
| 60″ | 69″ | 22.875″ | 56″ | 10.75″ | 20.5″ | 211 LBS |
| 72″ | 81″ | 25.875″ | 66.625″ | 11.5″ | 24.5″ | 271 LBS |
| 84″ | 93″ | 28.375″ | 77.125″ | 11.625″ | 28.5″ | 312 LBS |
| 96″ | 105″ | 30.625″ | 87.75″ | 11.625″ | 32.5″ | 352 LBS |
| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 20.125″ | 30.875″ | 10.75″ | 12.5″ | 157 LBS |
| 42″ | 51″ | 21.5″ | 37.25″ | 10.75″ | 14.5″ | 167 LBS |
| 48″ | 57″ | 22.875″ | 42.125″ | 10.75″ | 16.5″ | 178 LBS |
| 54″ | 63″ | 24″ | 47″ | 10.75″ | 18.5″ | 188 LBS |
| 60″ | 69″ | 25.5″ | 51.875″ | 10.75″ | 20.5″ | 216 LBS |
| 72″ | 81″ | 29″ | 61.625″ | 11.5″ | 24.5″ | 276 LBS |
| 84″ | 93″ | 32″ | 71.375″ | 11.625″ | 28.5″ | 317 LBS |
| 96″ | 105″ | 34.875″ | 81.125″ | 11.625″ | 32.5″ | 357 LBS |
| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 16″ | 38.875″ | 11.25″ | 12.5″ | 188 LBS |
| 42″ | 51″ | 16.75″ | 44.625″ | 11.25″ | 14.5″ | 202 LBS |
| 42″ | 51″ | 16.75″ | 44.625″ | 11.25″ | 14.5″ | 215 LBS |
| 42″ | 51″ | 16.75″ | 44.625″ | 11.25″ | 14.5″ | 228 LBS |
| 60″ | 69″ | 18.75″ | 61.875″ | 11.25″ | 20.5″ | 263 LBS |
| 72″ | 81″ | 20.875″ | 73.375″ | 12″ | 24.5″ | 300 LBS |
| 84″ | 93″ | 22.375″ | 84.875″ | 12.125″ | 28.5″ | 339 LBS |
| 96″ | 105″ | 23.75″ | 96.375″ | 12.125″ | 32.5″ | 378 LBS |
| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 18.75″ | 34.5″ | 11.25″ | 12.5″ | 194 LBS |
| 42″ | 51″ | 19.875″ | 39.75″ | 11.25″ | 14.5″ | 208 LBS |
| 48″ | 57″ | 21″ | 45″ | 11.25″ | 16.5″ | 222 LBS |
| 54″ | 63″ | 22.125″ | 50.25″ | 11.25″ | 18.5″ | 235 LBS |
| 60″ | 69″ | 23.75″ | 55.5″ | 11.25″ | 20.5″ | 270 LBS |
| 72″ | 81″ | 26.75″ | 66.125″ | 12″ | 24.5″ | 308 LBS |
| 84″ | 93″ | 28.75″ | 76.625″ | 12.125″ | 28.5″ | 350 LBS |
| 96″ | 105″ | 31″ | 87.25″ | 12.125″ | 32.5″ | 388 LBS |
| BELT | E | F | G | H | RL | WEIGHT |
|---|---|---|---|---|---|---|
| 36″ | 45″ | 20.5″ | 31.625″ | 11.25″ | 12.5″ | 199 LBS |
| 42″ | 51″ | 21.875″ | 36.5″ | 11.25″ | 14.5″ | 213 LBS |
| 48″ | 57″ | 23.25″ | 41.375″ | 11.25″ | 16.5″ | 228 LBS |
| 54″ | 63″ | 24.375″ | 46.25″ | 11.25″ | 18.5″ | 241 LBS |
| 60″ | 69″ | 25.875″ | 51.125″ | 11.25″ | 20.5″ | 276 LBS |
| 72″ | 81″ | 29.375″ | 60.875″ | 12″ | 24.5″ | 315 LBS |
| 84″ | 93″ | 32.375″ | 70.625″ | 12.125″ | 28.5″ | 360 LBS |
| 84″ | 93″ | 32.375″ | 70.625″ | 12.125″ | 28.5″ | 396 LBS |
Luff Industries Ltd. warrants that the products it manufactures are free from defects in material and workmanship, when used under normal operating conditions. The duration of this warranty is 24 months from the date of delivery, or 2,000 hours of operation, whichever occurs first.
If a defect is found to arise from manufacturing, the customer must notify Luff Industries Ltd. in writing, within 30 days from the date of failure before proceeding with repairs or returning the product. Luff Industries Ltd. will correct any defect in materials or workmanship by repair or replacement of the defective product. Luff Industries Ltd. shall not be responsible, under any circumstances, for more than the cost of repair or replacement of the defective product. Non-compliance of the above conditions can void the warranty and Luff Industries Ltd. will not be responsible for the cost of repairing or replacing the product.
