Trough Training, CEMA D

$1.00

Manufactured for medium to heavy duty applications, Luff CEMA D Idlers use a patented polymer endcap design offering the ultimate in strength, durability and sealing performance. All CEMA D Idlers are complete with no maintenance SKF bearings and can include the High Moisture Seal for even more protection against contamination.

Part Number: # N/A

Available in 5” and 6” diameters, CEMA D Steel and Impact Idlers are manufactured with Luff’s patented polymer endcap design, offering the ultimate in strength, durability and sealing performance. Steel shells are completely dipped in paint before assembly to prevent corrosion from inside. CEMA D rollers are built with a 1.25” shaft and 6305 bearings.

The polymer endcaps provide improved sealing arrangement, protecting the bearing from various environmental contaminants including dust and moisture. The Anti-lock Shield/High Moisture Seal is available as an option to further improve the bearing protection against moisture and contaminants.

To ensure proper belt tracking Trough Training assemblies come equipped with Luff’s Urethane Guide Rollers. Made of composite urethane material, the hourglass shape offers the ultimate belt control by preventing the belt from climbing up and over the guide roller.

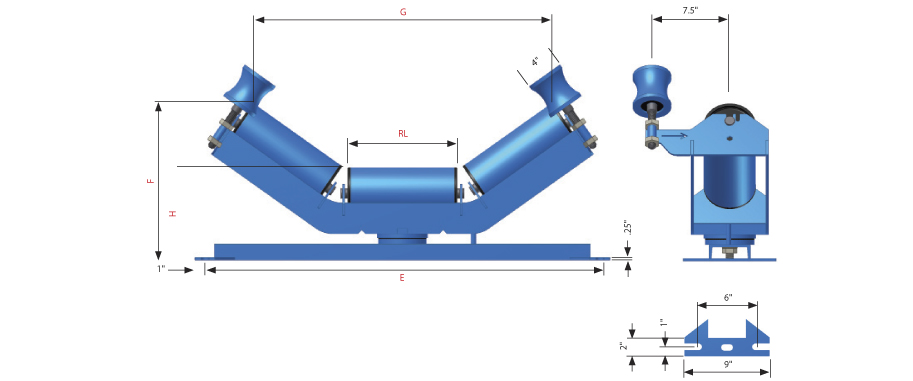

CEMA_C_D-HD_Trough_Training

BELT E F G H RL WEIGHT
18″ 27″ 11.813″ 21.688″ 9.25″ 6.75″ 71 LBS
24″ 33″ 12.5″ 27.5″ 9.25″ 8.75″ 86 LBS
30″ 39″ 13.188″ 33.25″ 9.25″ 10.75″ 96 LBS
36″ 45″ 13.813″ 39″ 9.25″ 12.75″ 112 LBS
42″ 51″ 14.625″ 44.75″ 9.375″ 14.75″ 129 LBS
48″ 57″ 15.3125″ 50.5″ 9.375″ 16.75″ 143 LBS
54″ 63″ 16.375″ 56.25″ 9.813″ 18.75″ 181 LBS
60″ 69″ 17.063″ 62″ 9.813″ 20.75″ 195 LBS
72″ 81″ 18.5″ 73.5″ 9.813″ 24.75″ 222 LBS
BELT E F G H RL WEIGHT
18″ 27″ 13.25″ 19″ 9.25″ 6.75″ 72 LBS
24″ 33″ 14.4325 24.25″ 9.25″ 8.75″ 87 LBS
30″ 39″ 15.563″ 29.5″ 9.25″ 10.75″ 97 LBS
36″ 45″ 16.75″ 34.75″ 9.25″ 12.75″ 113 LBS
42″ 51″ 17.9375″ 40″ 9.375″ 14.75″ 130 LBS
48″ 57″ 19.063″ 45.3125″ 9.375″ 16.75″ 144 LBS
54″ 63″ 20.625″ 50.5″ 9.813″ 18.75″ 182 LBS
60″ 69″ 21.75″ 55.75″ 9.813″ 20.75″ 196 LBS
72″ 81″ 24.063″ 66.4375″ 9.813″ 24.75″ 223 LBS
BELT E F G H RL WEIGHT
18″ 27″ 14.125″ 17.75″ 9.25″ 6.75″ 74 LBS
24″ 33″ 15.563″ 21.75″ 9.25″ 8.75″ 89 LBS
30″ 39″ 17″ 27.375″ 9.25″ 10.75″ 99 LBS
36″ 45″ 18.375″ 31.375″ 9.25″ 12.75″ 115 LBS
42″ 51″ 19.9375″ 37″ 9.375″ 14.75″ 132 LBS
48″ 57″ 21.3125″ 41.75″ 9.375″ 16.75″ 146 LBS
54″ 63″ 23.188″ 46.625″ 9.813″ 18.75″ 184 LBS
60″ 69″ 24.625″ 50.375″ 9.813″ 20.75″ 198 LBS
72″ 81″ 27.4375″ 61.063″ 9.813″ 24.75″ 225 LBS
BELT E F G H RL WEIGHT
18″ 27″ 12.25″ 21.375″ 9.75″ 6.75″ 83 LBS
24″ 33″ 12.9375″ 27.125″ 9.75″ 8.75″ 94 LBS
30″ 39″ 13.625″ 32.875″ 9.75″ 10.75″ 110 LBS
36″ 45″ 14.3125″ 38.625″ 9.75″ 12.75″ 123 LBS
42″ 51″ 15.063″ 44.375″ 9.875″ 14.75″ 140 LBS
48″ 57″ 15.75″ 50.125″ 9.875″ 16.75″ 155 LBS
54″ 63″ 16.875″ 55.875″ 10.3125″ 18.75″ 194 LBS
60″ 69″ 17.563″ 61.625″ 10.3125″ 20.75″ 213 LBS
72″ 81″ 18.9375″ 73.188″ 10.3125″ 24.75″ 237 LBS
BELT E F G H RL WEIGHT
18″ 27″ 13.688″ 18.5″ 9.75″ 6.75″ 84 LBS
24″ 33″ 14.813″ 23.75″ 9.75″ 8.75″ 95 LBS
30″ 39″ 15.9375″ 29″ 9.75″ 10.75″ 111 LBS
36″ 45″ 17.125″ 34.25″ 9.75″ 12.75″ 124 LBS
42″ 51″ 18.375″ 39.5″ 9.875″ 14.75″ 141 LBS
48″ 57″ 19.5″ 44.75″ 9.875″ 16.75″ 156 LBS
54″ 63″ 21.063″ 50″ 10.3125″ 18.75″ 195 LBS
60″ 69″ 22.25″ 55.25″ 10.3125″ 20.75″ 212 LBS
72″ 81″ 24.5″ 65.813″ 10.3125″ 24.75″ 238 LBS
BELT E F G H RL WEIGHT
18″ 27″ 14.5″ 17″ 9.75″ 6.375″ 86 LBS
24″ 33″ 15.9375″ 21.75″ 9.75″ 8.375″ 97 LBS
30″ 39″ 17.3125″ 26.625″ 9.75″ 10.375″ 113 LBS
36″ 45″ 18.75″ 31.375″ 9.75″ 12.375″ 126 LBS
42″ 51″ 20.25″ 36.25″ 9.875″ 14.375″ 143 LBS
48″ 57″ 21.688″ 41″ 9.875″ 16.375″ 158 LBS
54″ 63″ 23.563″ 45.875″ 10.3125″ 18.375″ 197 LBS
60″ 69″ 24.9375″ 50.625″ 10.3125″ 20.375″ 214 LBS
72″ 81″ 27.813″ 60.3125″ 10.3125″ 24.75″ 240 LBS
