Steel return roll 1

Steel Return Roll, CEMA C

$1.00

Manufactured for medium duty applications, Luff CEMA C Idlers use a patented polymer endcap design offering the ultimate in strength, durability and sealing performance. All CEMA C Idlers are complete with no maintenance SKF bearings and can include the High Moisture Seal for even more protection against contamination.

Part Number: # N/A

Available in 4”, 5” and 6” diameters, CEMA C Steel and Impact Idlers are manufactured with Luff’s patented polymer endcap design, offering the ultimate in strength, durability and sealing performance. Steel shells are completely dipped in paint before assembly to prevent corrosion from inside. 4” CEMA C Steel rollers are built with a 20mm shaft, whereas the 5”, 6” and Impact rollers are manufactured with 25 mm shafts.

The polymer endcaps provide improved sealing arrangement, protecting the bearing from various environmental contaminants including dust and moisture. The Anti-lock Shield/High Moisture Seal is available as an option to further improve the bearing protection against moisture and contaminants.

Rubber Disc Returns provide a self-cleaning action to reduce build-up on the roller, prolonging the belt life of the entire conveyor system.

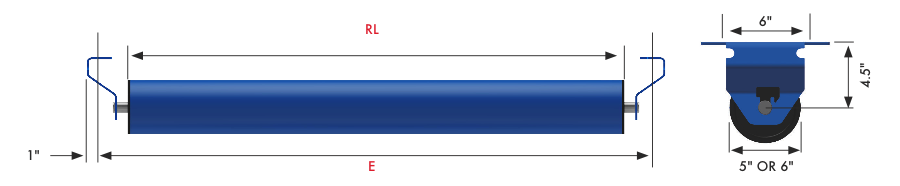

Steel-Return-Roll

BELT E RL WEIGHT
18″ 27″ 21.75″ 25 LBS
24″ 33″ 27.75″ 29 LBS
30″ 39″ 33.75″ 34 LBS
36″ 45″ 39.75″ 38 LBS
42″ 51″ 45.75″ 43 LBS
48″ 57″ 51.75″ 47 LBS
BELT E RL WEIGHT
18″ 27″ 21.75″ 29 LBS
24″ 33″ 27.75″ 35 LBS
30″ 39″ 33.75″ 40 LBS
36″ 45″ 39.75″ 46 LBS
42″ 51″ 45.75″ 51 LBS
48″ 57″ 51.75″ 57 LBS
CEMA C
Roller Data Sheet
