Steel return training

Steel Return Training, CEMA B

$1.00

Manufactured for light to medium loads and applications, Luff CEMA B Idlers use a patented polymer endcap design offering the ultimate in strength, durability and sealing performance. All CEMA B Idlers are complete with no maintenance SKF bearings and can include the High Moisture Seal for even more protection against contamination.

Part Number: # N/A

Available in 4”, 5” and 6” diameters, CEMA B Steel and Impact Idlers are manufactured with Luff’s patented polymer endcap design, offering the ultimate in strength, durability and sealing performance. Steel shells are completely dipped in paint before assembly to prevent corrosion from inside.

The polymer endcaps provide improved sealing arrangement, protecting the bearing from various environmental contaminants including dust and moisture. The Anti-lock Shield/High Moisture Seal is available as an option to further improve the bearing protection against moisture and contaminants.

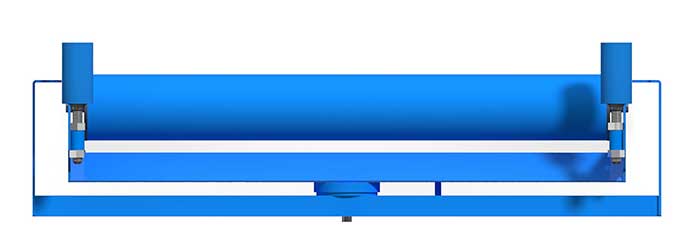

To ensure proper belt tracking Return Training assemblies come equipped with Luff’s Steel Guide Rollers. Featuring conventional steel shell design and straight sides, the 2SGR is perfect for areas with tight space constraints.

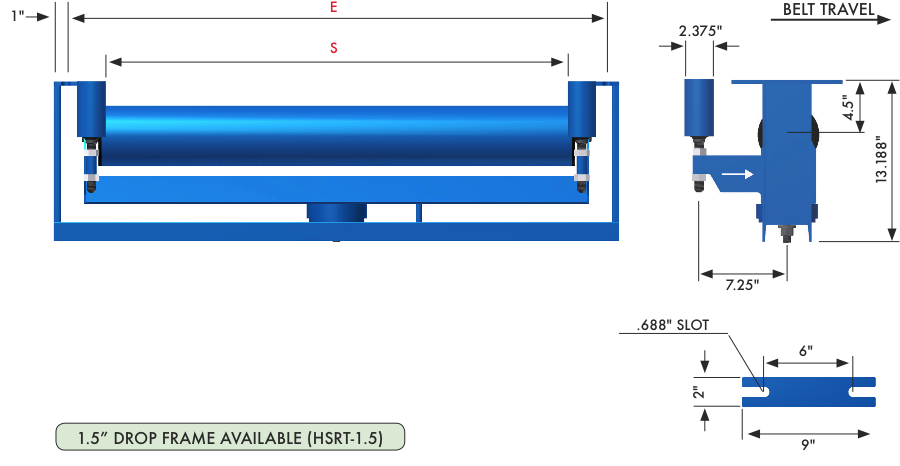

Steel-Return-Training

BELT E S WEIGHT
18″ 27″ 20″ 59 LBS
24″ 33″ 26″ 66 LBS
30″ 39″ 32″ 84 LBS
36″ 45″ 38″ 93 LBS
BELT E S WEIGHT
18″ 27″ 20″ 62 LBS
24″ 33″ 26″ 70 LBS
30″ 39″ 32″ 88 LBS
36″ 45″ 38″ 98 LBS
42″ 51″ 44″ 103 LBS
48″ 57″ 50″ 110 LBS
CEMA B
Roller Data Sheet

Industry leading warranty

Luff Industries Ltd. warrants that the products it manufactures are free from defects in material and workmanship, when used under normal operating conditions. The duration of this warranty is 24 months from the date of delivery, or 2,000 hours of operation, whichever occurs first.

If a defect is found to arise from manufacturing, the customer must notify Luff Industries Ltd. in writing, within 30 days from the date of failure before proceeding with repairs or returning the product. Luff Industries Ltd. will correct any defect in materials or workmanship by repair or replacement of the defective product. Luff Industries Ltd. shall not be responsible, under any circumstances, for more than the cost of repair or replacement of the defective product. Non-compliance of the above conditions can void the warranty and Luff Industries Ltd. will not be responsible for the cost of repairing or replacing the product.
